EKS cluster deployment using Terraform

Sebin Xavi on Aug 11, 20212021-08-11T08:30:00+05:30
Updated Feb 222022-02-22T12:16:20+05:30 7 min read

In this blog, I will be going to create an AWS EKS cluster with the help of Terraform scripts. Amazon Elastic Kubernetes Service (Amazon EKS) is a managed Kubernetes service provided by AWS. Terraform is a tool to manage your infrastructure as code so rather than provisioning an EKS cluster manually, you can use terraform to provision them for you.

Step 1: Set up Terraform with AWS

The first thing you should do is set up your Terraform. We will create an AWS IAM user for Terraform.

In the AWS console, go to the IAM section and create a user named “EKS-User”. Then add your user to a group named “FullAccessGroup”. Attaches to this group the following rights:

  • AdministratorAccess
  • AmazonEKSClusterPolicy

Following these steps, AWS will provide you a Secret Access Key and an Access Key ID.

In your own console, create a ~/.aws/credentials file and put your credentials in it:

1
2
3

[profile1]
aws_access_key_id = <Your access key>
aws_secret_access_key = <Your secret key>

Step 2: create provider.tf

1
2
3
4
5

provider "aws" {
  region     = var.region
  shared_credentials_file = "./.aws/credentials"
  profile = "profile1"
}

Step 3: Configure remote terraform state file

We will be using S3 backed and storing the terraform state file in the S3 bucket.

1
2
3
4
5
6
7
8
9

terraform {
  backend "s3" {
    bucket                  = "terraform-state-bucket-dev1"
    key                     = "eks/terraform.tfstate"
    region                  = "us-east-1"
    shared_credentials_file = "./.aws/credentials"
    profile = "profile1"
  }
}

Step 4: Create VPC

This EKS will be deployed in the custom VPC of three public subnets and three private subnets.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244

# ---------------------------------------------------
# Creating VPC
# ---------------------------------------------------
resource "aws_vpc" "myvpc" {

  cidr_block           = var.vpc_cidr
  instance_tenancy     = "default"
  enable_dns_support   = true
  enable_dns_hostnames = true
  tags = {
    Name = "${var.project}-vpc"
  }

}


# ---------------------------------------------------
# Attaching InterNet Gateway
# ---------------------------------------------------

resource "aws_internet_gateway" "igw" {

  vpc_id = aws_vpc.myvpc.id
  tags = {
    Name = "${var.project}-igw"
  }
}


# ---------------------------------------------------
# Subnet myvpc-public-1
# ---------------------------------------------------

resource "aws_subnet" "public1" {

  vpc_id                   = aws_vpc.myvpc.id
  cidr_block               = var.public1_cidr
  availability_zone        = var.public1_az
  map_public_ip_on_launch  = true
  tags = {
    Name = "${var.project}-public1"
  }
}

# ---------------------------------------------------
# Subent myvpc-public-2
# ---------------------------------------------------

resource "aws_subnet" "public2" {

  vpc_id                   = aws_vpc.myvpc.id
  cidr_block               = var.public2_cidr
  availability_zone        = var.public2_az
  map_public_ip_on_launch  = true
  tags = {
    Name = "${var.project}-public2"
  }
}



# ---------------------------------------------------
# Subnet myvpc-public-3
# ---------------------------------------------------

resource "aws_subnet" "public3" {

  vpc_id                   = aws_vpc.myvpc.id
  cidr_block               = var.public3_cidr
  availability_zone        = var.public3_az
  map_public_ip_on_launch  = true
  tags = {
    Name = "${var.project}-public3"
  }
}

# ---------------------------------------------------
# Subnet myvpc-private-1
# ---------------------------------------------------

resource "aws_subnet" "private1" {

  vpc_id                   = aws_vpc.myvpc.id
  cidr_block               = var.private1_cidr
  availability_zone        = var.private1_az
  map_public_ip_on_launch  = false
  tags = {
    Name = "${var.project}-private1"
  }
}

# ---------------------------------------------------
# Subnet myvpc-private-2
# ---------------------------------------------------

resource "aws_subnet" "private2" {

  vpc_id                   = aws_vpc.myvpc.id
  cidr_block               = var.private2_cidr
  availability_zone        = var.private2_az
  map_public_ip_on_launch  = false
  tags = {
    Name = "${var.project}-private2"
  }
}



# ---------------------------------------------------
# Subnet myvpc-private-3
# ---------------------------------------------------

resource "aws_subnet" "private3" {

  vpc_id                   = aws_vpc.myvpc.id
  cidr_block               = var.private3_cidr
  availability_zone        = var.private3_az
  map_public_ip_on_launch  = false
  tags = {
    Name = "${var.project}-private3"
  }
}


# ---------------------------------------------------
# Creating Elastic Ip
# ---------------------------------------------------

resource "aws_eip" "nat" {
  vpc      = true
  tags     = {
    Name = "${var.project}-eip"
  }
}


# ---------------------------------------------------
# Creating NAT gateway
# ---------------------------------------------------

resource "aws_nat_gateway" "nat" {

  allocation_id = aws_eip.nat.id
  subnet_id     = aws_subnet.public3.id

  tags = {
    Name = "${var.project}-nat"
  }
}

# ---------------------------------------------------
# Public Route table
# ---------------------------------------------------

resource "aws_route_table" "public" {

  vpc_id = aws_vpc.myvpc.id

  route {
    cidr_block = "0.0.0.0/0"
    gateway_id = aws_internet_gateway.igw.id
  }

  tags = {
    Name = "${var.project}-public"
  }
}


# ---------------------------------------------------
# Private Route table
# ---------------------------------------------------

resource "aws_route_table" "private" {

  vpc_id = aws_vpc.myvpc.id

  route {
    cidr_block = "0.0.0.0/0"
    nat_gateway_id = aws_nat_gateway.nat.id
  }

  tags = {
    Name = "${var.project}-private"
  }
}


# ---------------------------------------------------
# Route table Association public1 subnet
# ---------------------------------------------------

resource "aws_route_table_association" "public1" {
  subnet_id      = aws_subnet.public1.id
  route_table_id = aws_route_table.public.id
}


# ---------------------------------------------------
# Route table Association public2 subnet
# ---------------------------------------------------

resource "aws_route_table_association" "public2" {
  subnet_id      = aws_subnet.public2.id
  route_table_id = aws_route_table.public.id
}

# ---------------------------------------------------
# Route table Association public3 subnet
# ---------------------------------------------------

resource "aws_route_table_association" "public3" {
  subnet_id      = aws_subnet.public3.id
  route_table_id = aws_route_table.public.id
}


# ---------------------------------------------------
# Route table Association private1 subnet
# ---------------------------------------------------

resource "aws_route_table_association" "private1" {
  subnet_id      = aws_subnet.private1.id
  route_table_id = aws_route_table.private.id
}


# ---------------------------------------------------
# Route table Association private2 subnet
# ---------------------------------------------------

resource "aws_route_table_association" "private2" {
  subnet_id      = aws_subnet.private2.id
  route_table_id = aws_route_table.private.id
}

# ---------------------------------------------------
# Route table Association private3 subnet
# ---------------------------------------------------

resource "aws_route_table_association" "private3" {
  subnet_id      = aws_subnet.private3.id
  route_table_id = aws_route_table.private.id
}

Step 5: Create EKS Cluster

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

# ---------------------------------------------------
# Creating EKS Cluster
# ---------------------------------------------------
data "aws_eks_cluster" "cluster" {
  name = module.eks.cluster_id
}

data "aws_eks_cluster_auth" "cluster" {
  name = module.eks.cluster_id
}

provider "kubernetes" {
  host                   = data.aws_eks_cluster.cluster.endpoint
  cluster_ca_certificate = base64decode(data.aws_eks_cluster.cluster.certificate_authority.0.data)
  token                  = data.aws_eks_cluster_auth.cluster.token
  load_config_file       = false
}

module "eks" {
  source          = "terraform-aws-modules/eks/aws"
  cluster_name    = "my-eks"
  cluster_version = "1.21"
  subnets         = [aws_subnet.public1.id, aws_subnet.public2.id, aws_subnet.public3.id, aws_subnet.private1.id, aws_subnet.private2.id, aws_subnet.private3.id]
  vpc_id          = aws_vpc.myvpc.id

  node_groups = {
    public = {
      subnets          = [aws_subnet.public1.id, aws_subnet.public2.id, aws_subnet.public3.id]
      desired_capacity = 1
      max_capacity     = 10
      min_capacity     = 1

      instance_type = var.instance_type
      k8s_labels = {
        Environment = "public"
      }
    }
    private = {
      subnets          = [aws_subnet.private1.id, aws_subnet.private2.id, aws_subnet.private3.id]
      desired_capacity = 2
      max_capacity     = 10
      min_capacity     = 1

      instance_type = var.instance_type
      k8s_labels = {
        Environment = "private"
      }
    }
  }

}

Step 6: Deploy all your resources

Once you have finished declaring the variables in terraform.tfvars file, you can deploy the resources using below commands,

  • Terraform init: it is used to initialize a working directory containing Terraform configuration files.
  • Terraform apply: it is used to apply the changes required to reach the desired state of the configuration.

Step 7: Check the results

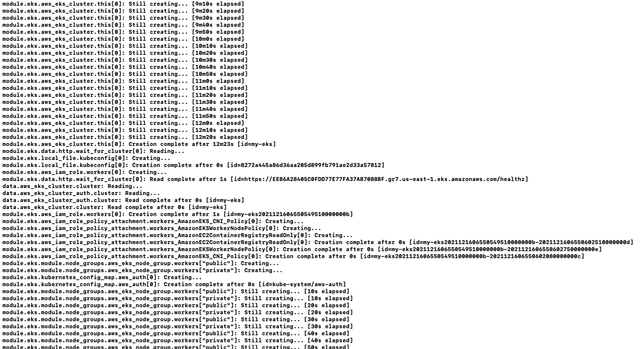

Console Output

alt text

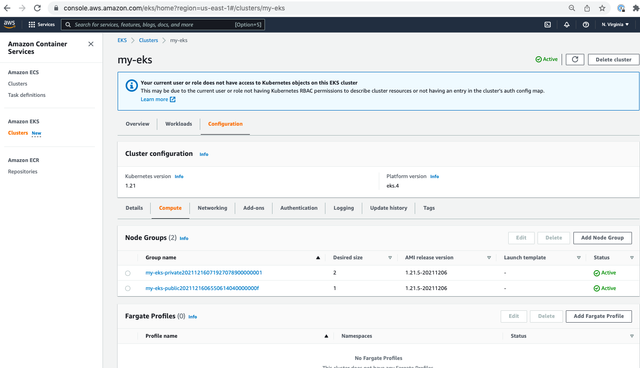

After the complete creation, you can go to your AWS account to see your resources:

alt text

Step 8: Interact with your EKS cluster

To interact with your cluster, run this command in your terminal:

1

aws eks --region us-east-1 update-kubeconfig --name my-eks

Next, run kubectl get nodes and you will see the worker nodes from your cluster!

1
2
3
4
5
6
7
8
9
10
11
12
13
14

root@ip-172-31-89-235:~# kubectl get nodes
NAME                             STATUS   ROLES    AGE   VERSION
ip-172-16-149-229.ec2.internal   Ready    <none>   34m   v1.21.5-eks-bc4871b
ip-172-16-173-136.ec2.internal   Ready    <none>   34m   v1.21.5-eks-bc4871b
ip-172-16-85-204.ec2.internal    Ready    <none>   59m   v1.21.5-eks-bc4871b
root@ip-172-31-89-235:~#
root@ip-172-31-89-235:~#
root@ip-172-31-89-235:~# kubectl get ns
NAME              STATUS   AGE
default           Active   64m
kube-node-lease   Active   64m
kube-public       Active   64m
kube-system       Active   64m
root@ip-172-31-89-235:~#

That concludes the blog on using Terraform to deploy Kubernetes clusters on AWS cloud provider. If your cluster is no longer needed, execute the command ‘terraform destroy’. Have a great time as you continue your Kubernetes journey!

Author

Created by @sebinxavi - feel free to contact me and advise as necessary!
